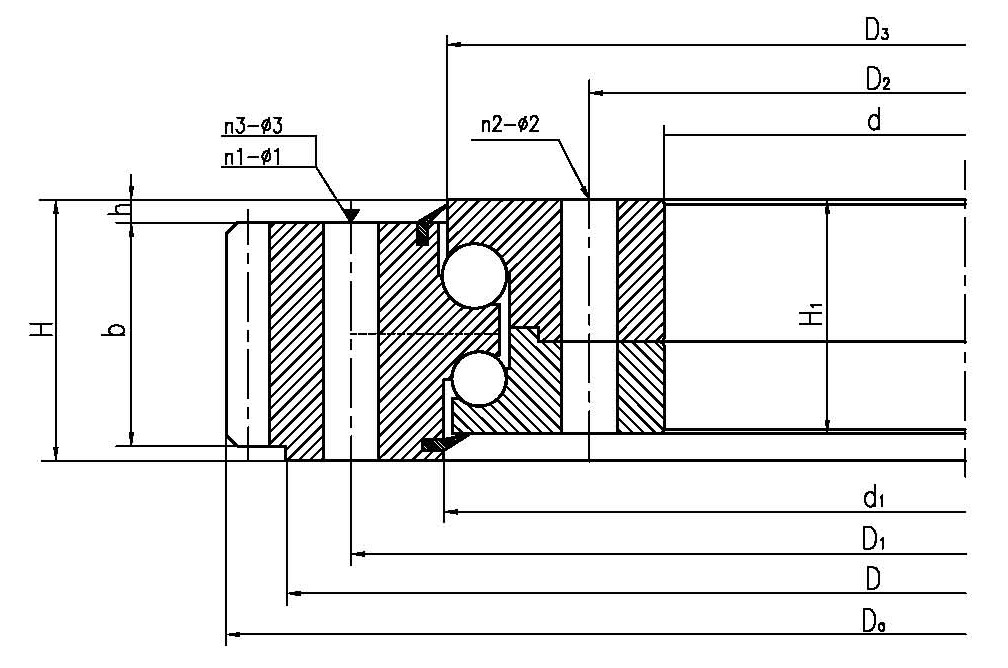

| LYC 型號 | TG 型號 | 外形尺寸(mm) | 安裝尺寸(mm) | 結構尺寸(mm) | 齒參數(mm) | 額定軸向靜負荷(KN) | 重量(KG) | | Da | D | di | H | La | Li | n1 | n2 | φ1 | φ2 | D1 | d | b | h | B | C | Di | da | m | z | do | x |
| 021.25.500.** |
|
645 | 616 | 384 | 106 | 580 | 420 | 20 | 20 | 18 | 18 | | | 60 | 26 | 96 | 80 | 517 | 523 | 5 | 126 | | +0.5 | 1210 | 100 |
| 022.25.500.** |
|
648 | 616 | 384 | 106 | 580 | 420 | 20 | 20 | 18 | 18 | | | 60 | 26 | 96 | 80 | 477 | 483 | 6 | 105 | | +0.5 | 1210 | 100 |
| 021.25.560.** |
|
705 | 676 | 444 | 106 | 640 | 480 | 20 | 20 | 18 | 18 | | | 60 | 26 | 96 | 80 | 577 | 583 | 5 | 138 | | +0.5 | 1340 | 115 |
| 022.25.560.** |
|
708 | 676 | 444 | 106 | 640 | 480 | 20 | 21 | 18 | 18 | | | 60 | 26 | 96 | 80 | 537 | 543 | 6 | 115 | | +0.5 | 1340 | 115 |
| 021.25.630.** |
|
792 | 746 | 514 | 106 | 710 | 550 | 24 | 24 | 18 | 18 | | | 60 | 26 | 96 | 80 | 647 | 653 | 6 | 129 | | +0.5 | 1530 | 130 |
| 022.25.630.** |
|
792 | 746 | 514 | 106 | 710 | 550 | 24 | 24 | 18 | 18 | | | 60 | 26 | 96 | 80 | 607 | 613 | 8 | 96 | | +0.5 | 1530 | 130 |
| |
|
862.8 | | 679 | 82 | 800 | 706 | 24 | 24 | M16 | 17.5 | 833 | | 50 | 24 | 78 | 58 | 771 | 797 | 6 | 142 | 852 | | 1950 | 101 |
| 021.25.710.** |
|
864 | 826 | 594 | 106 | 790 | 630 | 24 | 24 | 18 | 18 | | | 60 | 26 | 96 | 80 | 727 | 733 | 6 | 141 | | +0.5 | 1730 | 140 |
| 022.25.710.** |
|
864 | 826 | 594 | 106 | 790 | 630 | 24 | 24 | 18 | 18 | | | 60 | 26 | 96 | 80 | 687 | 693 | 8 | 105 | | +0.5 | 1730 | 140 |
| 021.30.800.** |
|
984 | 942 | 658 | 124 | 898 | 702 | 30 | 30 | 22 | 22 | | | 80 | 29 | 114 | 95 | 822 | 828 | 8 | 120 | | +0.5 | 2300 | 200 |
| 022.30.800.** |
|
990 | 942 | 658 | 124 | 898 | 702 | 30 | 30 | 22 | 22 | | | 80 | 29 | 114 | 95 | 771 | 778 | 10 | 96 | | +0.5 | 2300 | 200 |
| |
|
1078.4 | | 895 | 82 | 1015 | 922 | 30 | 30 | M16 | 17.5 | 1042 | | 50 | 24 | 78 | 58 | 987 | 1012 | 8 | 133 | 1064 | | 2500 | 128 |
| 021.30.900.** |
|
1088 | 1042 | 758 | 124 | 998 | 802 | 30 | 30 | 22 | 22 | | | 80 | 29 | 114 | 95 | 922 | 928 | 8 | 133 | | +0.5 | 2580 | 250 |
| 022.30.900.** |
|
1090 | 1042 | 758 | 124 | 998 | 802 | 30 | 30 | 22 | 22 | | | 80 | 29 | 114 | 95 | 871 | 878 | 10 | 106 | | +0.5 | 2580 | 250 |
| 021.30.1000.** |
|
1200 | 1142 | 858 | 124 | 1098 | 902 | 36 | 36 | 22 | 22 | | | 80 | 29 | 114 | 95 | 1022 | 1028 | 10 | 117 | | +0.5 | 2860 | 300 |
| 022.30.1000.** |
|
1200 | 1142 | 858 | 124 | 1098 | 902 | 36 | 36 | 22 | 22 | | | 80 | 29 | 114 | 95 | 971 | 978 | 12 | 97 | | +0.5 | 2860 | 300 |
| 021.30.1120.** |
|
1320 | 1262 | 978 | 124 | 1218 | 1022 | 36 | 36 | 22 | 22 | | | 80 | 29 | 114 | 95 | 1142 | 1148 | 10 | 129 | | +0.5 | 3210 | 340 |
| 022.30.1120.** |
|
1320 | 1262 | 978 | 124 | 1218 | 1022 | 36 | 36 | 22 | 22 | | | 80 | 29 | 114 | 95 | 1091 | 1098 | 12 | 107 | | +0.5 | 3210 | 340 |
| |
|
1342.4 | | 1140 | 82 | 1270 | 1170 | 48 | 48 | M16 | 17.5 | | | 58 | 24 | 78 | 58 | 1238 | 1261 | 8 | 165 | 1320 | 0.5 | 3150 | 178 |
| |
|
1378 | | 1100 | 102 | 1290 | 1135 | 36 | 36 | 22 | 22 | | | 76 | 26 | 96 | 76 | 1215 | 1223 | 10 | 135 | 1350 | 0.5 | 3720 | 301 |
| 022.40.1250.** |
|
1498 | 1426 | 1074 | 160 | 1374 | 1126 | 40 | 40 | 26 | 26 | | | 90 | 39 | 150 | 121 | 1214 | 1218 | 14 | 104 | | +0.5 | 4820 | 580 |
| 021.40.1250.** |
|
1500 | 1426 | 1074 | 160 | 1374 | 1126 | 40 | 40 | 26 | 26 | | | 90 | 39 | 150 | 121 | 1282 | 1286 | 12 | 122 | | +0.5 | 4820 | 580 |
| |
|
1502.4 | | 1305 | 82 | 1435 | 1335 | 54 | 54 | M16 | 17.5 | | | 58 | 24 | 78 | 58 | 1403 | 1426 | 8 | 185 | 1480 | 0.5 | 3650 | 201 |
| 021.40.1400.** |
|
1644 | 1576 | 1224 | 160 | 1524 | 1272 | 40 | 40 | 26 | 26 | | | 90 | 39 | 150 | 121 | 1432 | 1436 | 12 | 134 | | +0.5 | 5430 | 650 |
| |
|
1648 | | 1360 | 102 | 1555 | 1395 | 40 | 40 | 22 | 22 | | | 76 | 26 | 96 | 76 | 1479 | 1484 | 10 | 162 | 1620 | 0.5 | 4600 | 381 |
| 022.40.1400.** |
|
1652 | 1576 | 1224 | 160 | 1524 | 1272 | 40 | 40 | 26 | 26 | | | 90 | 39 | 150 | 121 | 1364 | 1368 | 14 | 115 | | +0.5 | 5430 | 650 |
| |
|
1653.6 | | 1320 | 120 | 1545 | 1365 | 36 | 36 | 26 | 26 | | | 91 | 29 | 114 | 91 | 1460 | 1469 | 12 | 135 | 1620 | 0.5 | 5280 | 520 |
| 021.40.1600.** |
|
1848 | 1776 | 1424 | 160 | 1724 | 1476 | 45 | 45 | 26 | 26 | | | 90 | 39 | 150 | 121 | 1632 | 1636 | 14 | 129 | | +0.5 | 6200 | 750 |
| 022.40.1600.** |
|
1856 | 1776 | 1424 | 160 | 1724 | 1476 | 45 | 45 | 26 | 26 | | | 90 | 39 | 150 | 121 | 1564 | 1568 | 16 | 113 | | +0.5 | 6200 | 750 |
| |
|
1953.6 | | 1615 | 120 | 1845 | 1660 | 44 | 44 | 26 | 26 | | | 91 | 29 | 114 | 91 | 1757 | 1763 | 12 | 160 | 1920 | 0.5 | 6400 | 636 |
|
