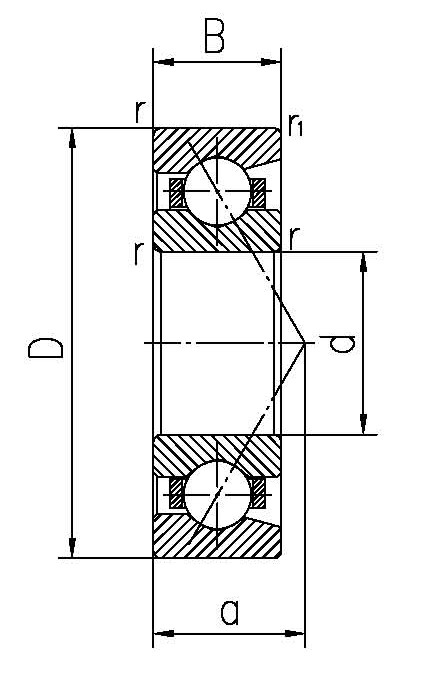

| 外形尺寸 | 基本負荷(KN) | 極限轉速(r/min) | 重量(KG) | | d | D | B | Rsmin | R1smin | a | 動 | 靜 | 脂潤滑 | 油潤滑 |
| 150 | 210 | 28 | 2 | 1 | 38 | 113 | 131 | 2600 | 3400 | 2.8 |
| 150 | 210 | 28 | 2 | 1 | 56 | 107 | 126 | 2600 | 3400 | 2.8 |
| 150 | 225 | 35 | 2.1 | 1 | 43 | 155 | 171 | 2400 | 3200 | 4.5 |
| 150 | 225 | 35 | 2.1 | 1 | 62 | 147 | 162 | 2400 | 3200 | 4.5 |
| 150 | 225 | 35 | 2.1 | 1.1 | 96 | 107 | 119 | 2400 | 3200 | 4.5 |
| 150 | 270 | 45 | 3 | 1.1 | 71 | 190 | 270 | 2000 | 2600 | 12 |
| 150 | 270 | 45 | 3 | 1.1 | 71 | 190 | 270 | 2000 | 2600 | 12 |
| 150 | 270 | 45 | 3 | 1.1 | 111 | 176 | 202 | 2000 | 2600 | 12 |
| 150 | 320 | 65 | 4 | 1.5 | 87 | 280 | 430 | 1800 | 2400 | 26 |
| 150 | 320 | 65 | 4 | 1.5 | 131 | 245 | 380 | 1800 | 2400 | 26 |
| 160 | 220 | 28 | 2 | 1 | 40 | 117 | 144 | 2400 | 3200 | 2.9 |
| 160 | 220 | 28 | 2 | 1 | 58 | 112 | 138 | 2400 | 3200 | 2.9 |
| 160 | 240 | 38 | 2.1 | 1 | 46 | 176 | 195 | 2200 | 3000 | 6 |
| 160 | 240 | 38 | 2.1 | 1 | 66 | 164 | 184 | 2200 | 3000 | 6 |
| 160 | 240 | 38 | 2.1 | 1 | 66 | 164 | 184 | 2200 | 3000 | 6 |
| 160 | 240 | 38 | 2.1 | 1.1 | 103 | 129 | 150 | 2200 | 3000 | 6 |
| 160 | 290 | 48 | 3 | 1.1 | 54 | 200 | 300 | 1800 | 2400 | 14 |
| 160 | 290 | 48 | 3 | 1.1 | 76 | 190 | 280 | 1800 | 2400 | 14 |
| 160 | 290 | 18 | 3 | 1.1 | 118 | 180 | 215 | 1800 | 2400 | 14 |
| 160 | 340 | 68 | 4 | 1.5 | 139 | 260 | 400 | 1700 | 2200 | 32 |
| 170 | 230 | 28 | 2 | 1 | 41 | 120 | 150 | 2200 | 3000 | 3 |
| 170 | 230 | 28 | 2 | 1 | 61 | 112 | 145 | 2200 | 3000 | 3 |
| 170 | 260 | 42 | 2.1 | 1.1 | 50 | 191 | 221 | 2200 | 2800 | 8.5 |
| 170 | 260 | 42 | 2.1 | 1.1 | 71 | 180 | 210 | 2200 | 2800 | 8.5 |
| 170 | 260 | 42 | 2.1 | 1.1 | 111 | 155 | 185 | 2200 | 2800 | 8.5 |
| 170 | 310 | 52 | 4 | 1.5 | 58 | 250 | 300 | 1800 | 2400 | 18.2 |
| 170 | 310 | 52 | 4 | 1.5 | 82 | 235 | 290 | 1800 | 2400 | 18.2 |
| 170 | 310 | 52 | 4 | 1.5 | 82 | 235 | 290 | 1800 | 2400 | 18.2 |
| 170 | 310 | 52 | 4 | 1.5 | 127 | 200 | 245 | 1800 | 2400 | 18.2 |
| 170 | 360 | 72 | 4 | 1.5 | 147 | 325 | 410 | 1500 | 2000 | 36 |
|
