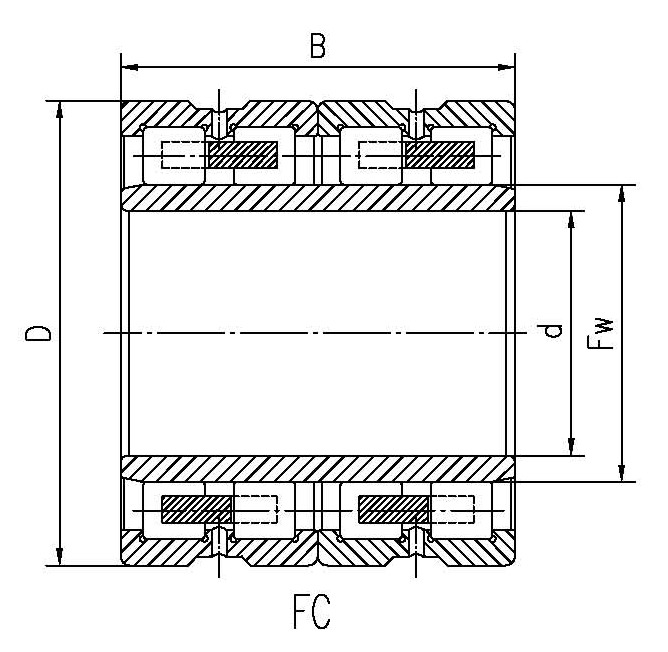

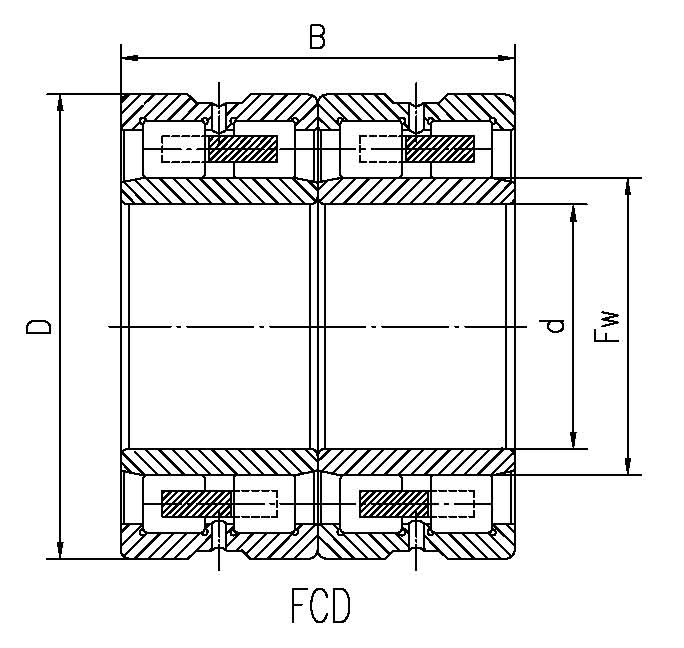

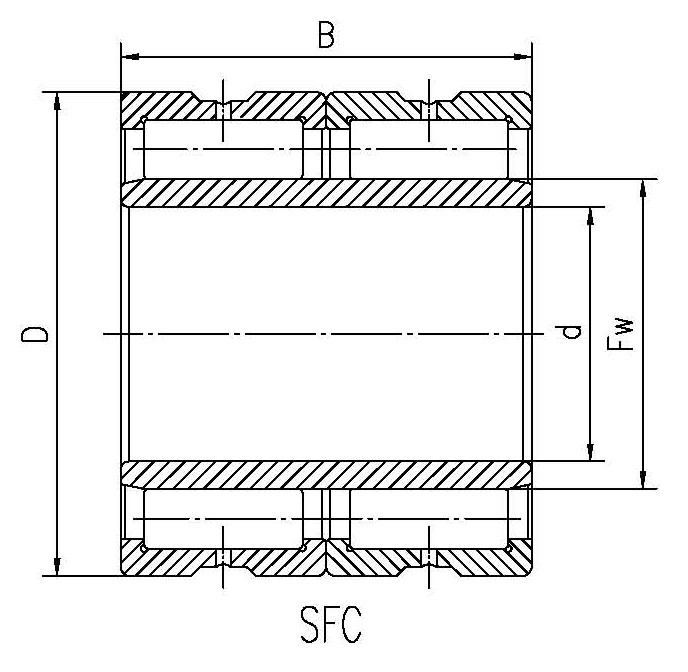

| 外形尺寸(mm) | 基本負荷(KN) | 極限轉(zhuǎn)速(r/min) | 重量(KG) | | d | D | B | R2smin | Fw(Ew) | 動 | 靜 | Old_spec | Designations |
| 100 | 135 | 80 | 1.5 | 110 | 200 | 510 | 3400 | 4000 | 3 |
| 100 | 138 | 80 | 1.5 | 110 | 260 | 600 | 3400 | 4000 | 3.7 |
| 100 | 140 | 70 | 1.5 | 111 | 190 | 410 | 3400 | 4000 | 3.5 |
| 100 | 140 | 104 | 1.5 | 111 | 290 | 700 | 3400 | 4000 | 5.1 |
| 100 | 145 | 70 | 1.5 | 113 | 220 | 460 | 3400 | 4000 | 4.1 |
| 100 | 150 | 106 | 1.5 | 113 | 350 | 740 | 3400 | 4000 | 6.8 |
| 110 | 150 | 80 | 1.5 | 122 | 240 | 600 | 3100 | 3800 | 4.4 |
| 110 | 170 | 90 | 2 | 127 | 360 | 750 | 2800 | 2600 | 7.9 |
| 110 | 170 | 120 | 2 | 127 | 360 | 750 | 2800 | 3600 | 10.6 |
| 120 | 180 | 92 | 2 | 137 | 375 | 820 | 2600 | 3400 | 8.7 |
| 120 | 180 | 105 | 2 | 136 | 430 | 920 | 2600 | 3400 | 9.8 |
| 120 | 180 | 120 | 2 | 136 | 480 | 1060 | 2600 | 3400 | 11.2 |
| 130 | 200 | 104 | 2 | 150 | 480 | 1000 | 2400 | 3000 | 12.5 |
| 130 | 200 | 125 | 3 | 149 | 530 | 1140 | 2400 | 3000 | 15 |
| 140 | 190 | 119 | 2 | 154 | 470 | 1250 | 2400 | 3000 | 9.5 |
| 140 | 210 | 100 | 2 | 158 | 500 | 1100 | 2200 | 2800 | 12.8 |
| 140 | 210 | 106 | 2 | 158 | 500 | 1100 | 2200 | 2800 | 13.6 |
| 140 | 210 | 125 | 2 | 158 | 620 | 1360 | 2200 | 2800 | 15.87 |
| 140 | 210 | 155 | 2 | 158 | 760 | 1770 | 2200 | 2800 | 19.6 |
| 145 | 210 | 155 | 2 | 166 | 720 | 1560 | 2200 | 2800 | 17.5 |
| 145 | 225 | 156 | 2 | 169 | 800 | 1940 | 2000 | 2600 | 24.4 |
| 150 | 210 | 120 | 2 | 166 | 600 | 1500 | 2200 | 2800 | 12.5 |
| 150 | 210 | 120 | 2 | 166 | 600 | 1500 | 2200 | 2800 | 12.5 |
| 150 | 220 | 120 | 2 | 167 | 630 | 1360 | 2100 | 2700 | 15 |
| 150 | 225 | 120 | 2 | 169 | 790 | 1560 | 2000 | 2600 | 17.3 |
| 150 | 225 | 120 | 2 | 169 | 725 | 1590 | 2000 | 2600 | 17.5 |
| 150 | 225 | 150 | 2 | 169 | 780 | 1750 | 2000 | 2600 | 20 |
| 150 | 230 | 156 | 2 | 174 | 815 | 1660 | 2000 | 2600 | 23.5 |
| 150 | 230 | 156 | 2 | 174 | 815 | 1900 | 2000 | 2600 | 23.5 |
| 160 | 225 | 168 | 2 | 183 | 950 | 2300 | 2000 | 2600 | - |
|
