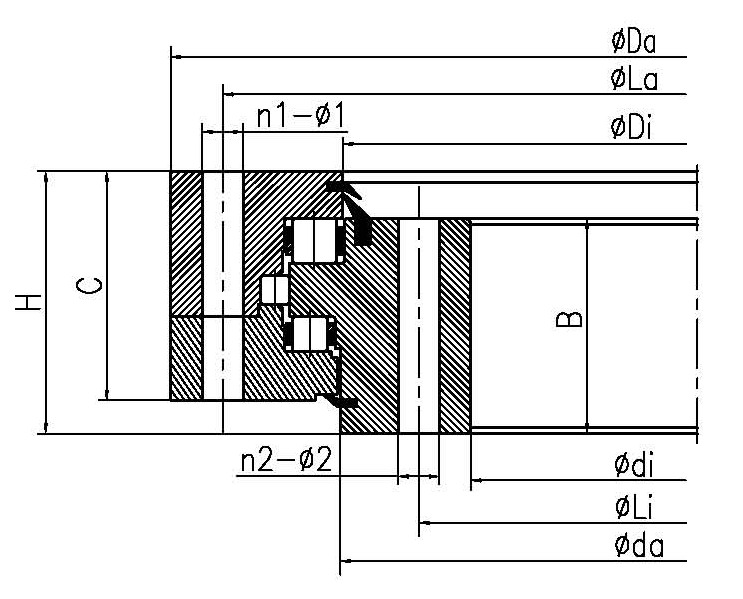

| LYC 型號 | 外形尺寸(mm) | 安裝尺寸(mm) | 結構尺寸(mm) | 齒參數(mm) | 額定軸向靜負荷(KN) | 重量(KG) | | Da | D | di | H | La | Li | n1 | n2 | φ1 | φ2 | d | b | h | B | C | Di | da | m | z | do | x | 動 | 靜 |
| 130.25.500.** |
| 634 | 366 | 148 | 598 | 402 | 24 | 24 | 18 | 18 | | | 10 | 116 | 138 | 526 | 537 | | | | | 2750 | 355 | 224 |
| 130.25.560.** |
| 694 | 426 | 148 | 658 | 462 | 24 | 24 | 18 | 18 | | | 10 | 116 | 138 | 586 | 597 | | | | | 3080 | 399 | 240 |
| 130.25.630.** |
| 764 | 496 | 148 | 728 | 532 | 28 | 28 | 18 | 18 | | | 10 | 116 | 138 | 656 | 667 | | | | | 3450 | 451 | 270 |
| 130.25.710.** |
| 844 | 576 | 148 | 808 | 612 | 28 | 28 | 18 | 18 | | | 10 | 116 | 138 | 736 | 747 | | | | | 3880 | 517 | 300 |
| 130.32.800.** |
| 964 | 636 | 182 | 920 | 680 | 36 | 36 | 22 | 22 | | | 10 | 142 | 172 | 830 | 841 | | | | | 5490 | 712 | 500 |
| 130.32.900.** |
| 1064 | 736 | 182 | 1020 | 780 | 36 | 36 | 22 | 22 | | | 10 | 142 | 172 | 930 | 941 | | | | | 6190 | 808 | 600 |
| |
| 1180 | 800 | 166 | 1114 | 866 | 24 | 24 | M30 | M30 | | | 21 | 136 | 145 | 962 | 965 | | | | | 7500 | | 581 |
| 130.32.1000.** |
| 1164 | 836 | 182 | 1120 | 880 | 40 | 40 | 22 | 22 | | | 10 | 142 | 172 | 1030 | 1041 | | | | | 6890 | 903 | 680 |
| 130.32.1120.** |
| 1284 | 956 | 182 | 1240 | 1000 | 40 | 40 | 22 | 22 | | | 10 | 142 | 172 | 1150 | 1161 | | | | | 7680 | 1020 | 820 |
| 130.40.1250.** |
| 1445 | 1055 | 220 | 1393 | 1107 | 45 | 45 | 26 | 26 | | | 10 | 170 | 210 | 1290 | 1300 | | | | | 11100 | 1460 | 1200 |
| 130.40.1400.** |
| 1595 | 1205 | 220 | 1543 | 1257 | 45 | 45 | 26 | 26 | | | 10 | 170 | 210 | 1440 | 1450 | | | | | 12400 | 1650 | 1300 |
| 130.40.1600.** |
| 1795 | 1405 | 220 | 1743 | 1457 | 48 | 48 | 26 | 26 | | | 10 | 170 | 210 | 1640 | 1650 | | | | | 14200 | 1900 | 1520 |
| 130.40.1800.** |
| 1995 | 1605 | 220 | 1943 | 1657 | 48 | 48 | 26 | 26 | | | 10 | 170 | 210 | 1840 | 1850 | | | | | 15900 | 2150 | 1750 |
| 130.45.2000.** |
| 2195 | 1816 | 150 | 2127 | 1885 | 60 | 60 | 33 | 33 | | | 13 | 117 | 137 | 2041 | | | | | | 16900 | 663 | 1120 |
| 130.45.2240.** |
| 2461 | 2019 | 231 | 2395 | 2085 | 60 | 60 | 33 | 33 | | | 12 | 177 | 219 | 2273 | 2295 | | | | | 23100 | 2680 | 2700 |
| 130.45.2500.** |
| 2721 | 2279 | 231 | 2655 | 2345 | 72 | 72 | 33 | 33 | | | 12 | 177 | 219 | 2533 | 2555 | | | | | 25800 | 3020 | 3000 |
| 130.45.2800.** |
| 3021 | 2579 | 231 | 2955 | 2645 | 72 | 72 | 33 | 33 | | | 12 | 177 | 219 | 2833 | 2855 | | | | | 28800 | 3390 | 3400 |
| 130.50.3150.** |
| 3432 | 2868 | 270 | 3342 | 2958 | 72 | 72 | 45 | 45 | | | 12 | 205 | 258 | 3196 | 3213 | | | | | 35900 | 3810 | 5000 |
| 130.50.3150.12K |
| 3432 | 2868 | 270 | 3342 | 2958 | 72 | 72 | 45 | 45 | | | 12 | 220 | 258 | 3086 | 3103 | | | | | 37350 | 5020 | 4900 |
| 130.50.3550.** |
| 3832 | 3268 | 270 | 3742 | 3358 | 72 | 72 | 45 | 45 | | | 12 | 202 | 258 | 3596 | 3613 | | | | | 40400 | 4310 | 5600 |
| 3-913G |
| 4300 | 3650 | 355 | 4210 | 3750 | 90 | 90 | 48 | 48 | | | | | | | | | | | | 65700 | 13300 | 9503 |
| 130.50.4000.** |
| 4282 | 3718 | 270 | 4192 | 3908 | 80 | 80 | 45 | 45 | | | 12 | 202 | 258 | 4046 | 4063 | | | | | 45600 | 4870 | 6400 |
| 130.50.4500.40 |
| 4782 | 4218 | 270 | 4692 | 4308 | 80 | 80 | 45 | 45 | | | 12 | 202 | 258 | 4546 | 4563 | | | | | 54450 | 5800 | 6942 |
|
